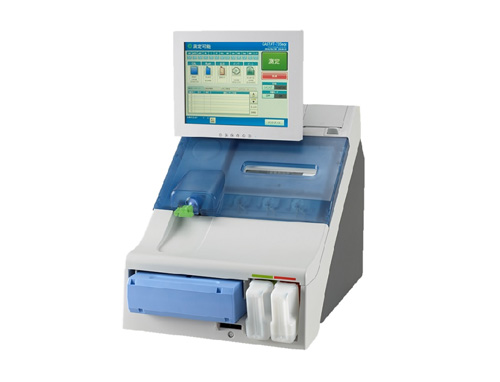

Blood Gas System
Evolution in blood gas analysis towards new stage Innovative proposal by TMC

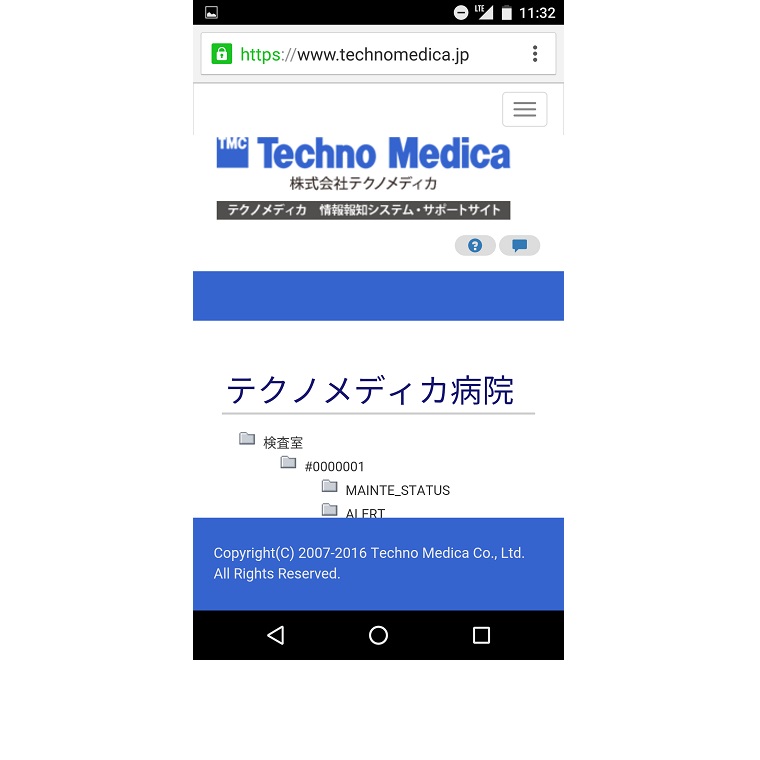

24 hours, 365 days connected to smart phone / PC
| Sample Type | Whole blood, Serum, Plasma, Dialysate | |||||
| Test available | Measured range | 710 | 720 | 730 | 735 | |
| 710aqc | 720aqc | 730aqc | 735aqc | |||
| pH | 6.000〜8.000 | ● | ● | ● | ● | |
| pCO₂ | 10.0〜200.0 Torr | ● | ● | ● | ● | |
| pO₂ | 5.0〜713.0 Torr | ● | ● | ● | ● | |
| cNa⁺ | 50.0〜200.0 mmol/L | ● | ● | ● | ||
| cK⁺ | 1.00〜20.00 mmol/L | ● | ● | ● | ||
| cCl⁻ | 50.0〜200.0 mmol/L | ● | ● | ● | ||
| cCa²⁺ | 0.5〜5.0 mmol/L | ● | ● | ● | ||

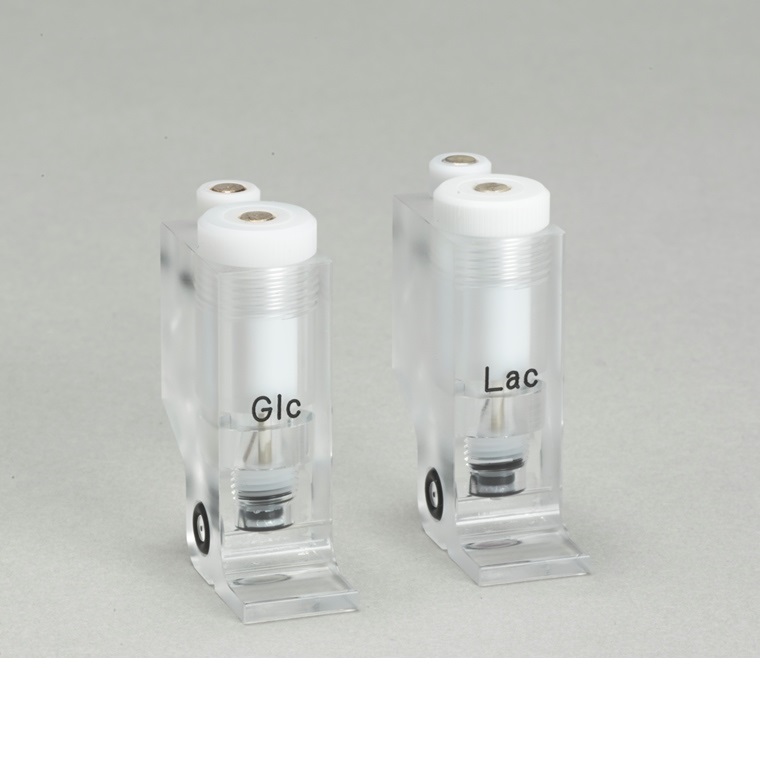

| Sample Type | cGlucose | 20.0〜500 mg/dL | ● | ● | ||
| cLactate | 0.4〜15.0 mmol/L | ● | ● | |||
| ctBil | 2.0〜60.0 mg/dL | ● | ||||
| cHb | 2.0〜23.0 g/dL | ● | ● | ● | ||
| ctHb | 2.0〜23.0 g/dL | ● | ||||
| sO₂ | 0.0〜100.0 % | ● | ||||
| FO₂Hb | 0.0〜100.0 % | ● | ||||
| FCOHｂ | 0.0〜100.0 % | ● | ||||
| FMetHb | 0.0〜100.0 % | ● | ||||
| FHHｂ | 0.0〜100.0 % | ● | ||||
| Sample volume |

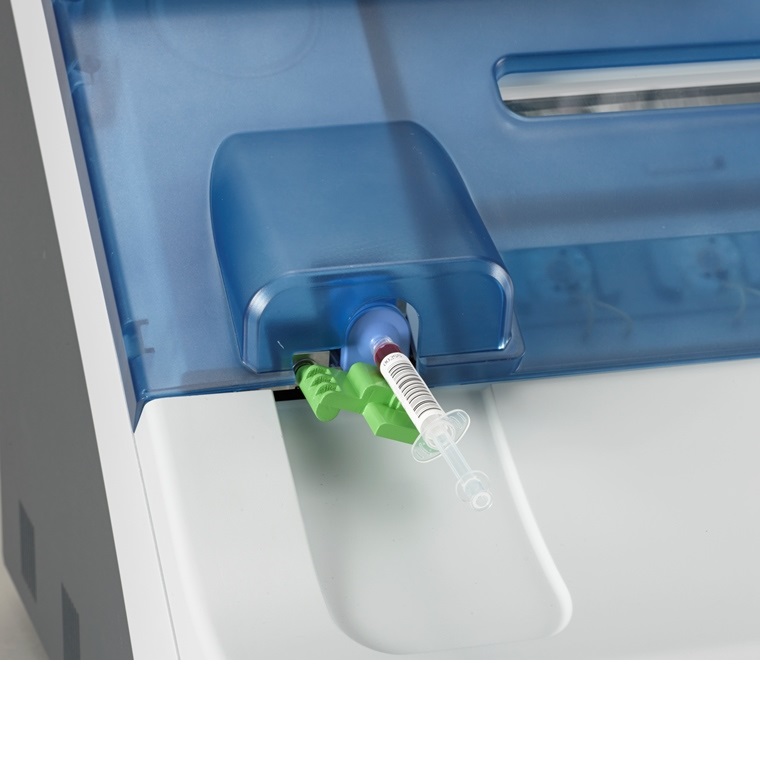

GASTAT-710/720（aqc）；Syringe: 195μL ／ Capillary: 80μL ／ Micro mode: 40μL GASTAT-730/735（aqc）；Syringe: 195μL ／ Capillary: 100μL ／ Micro mode: 40μL |
|||||
| Analysis time |
From pressing analysis icon to test result display (Ideal value) GASTAT-710/720（aqc）；About 60 seconds GASTAT-730（aqc）；About 70 seconds GASTAT-735（aqc）；About 90 seconds |
|||||

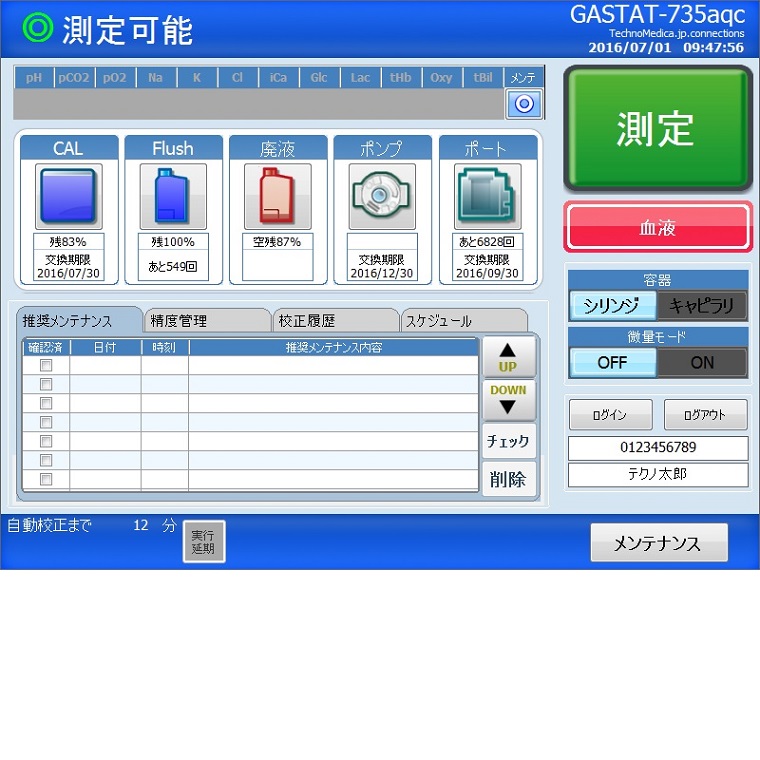

| Display | 12 inch full color display / Touch panel | |||||
| Entered parameter | Patient ID, Patient Temp, Sample type, ＦiO2, Height, Weight, Sex, Age | |||||
| Calibration | Automatic, programmable 1 and 2 point calibration | |||||
| Reagent and waste detection | Automatic intergrated detection | |||||
| Data storage | 10,000 sample | |||||
| Printer | Line thermal printer | |||||
| Interface | TCP/IP (IHE compatible) | |||||
| Barcode reader | Built-in (12type of barcode available) | |||||
| Operating temperature | 10〜30℃ | |||||
| Humidity | 20〜80％ | |||||
| Power | AC85～264V 50/60Hz 240W Back up option by battery | |||||
| Dimensions （mm） | 400(W)X575(D)X635(H) | |||||
| Weight | 28KG | |||||
| Others | Maintenance reservation/Information report/Remote management/Network/Animation guidance | |||||
